a

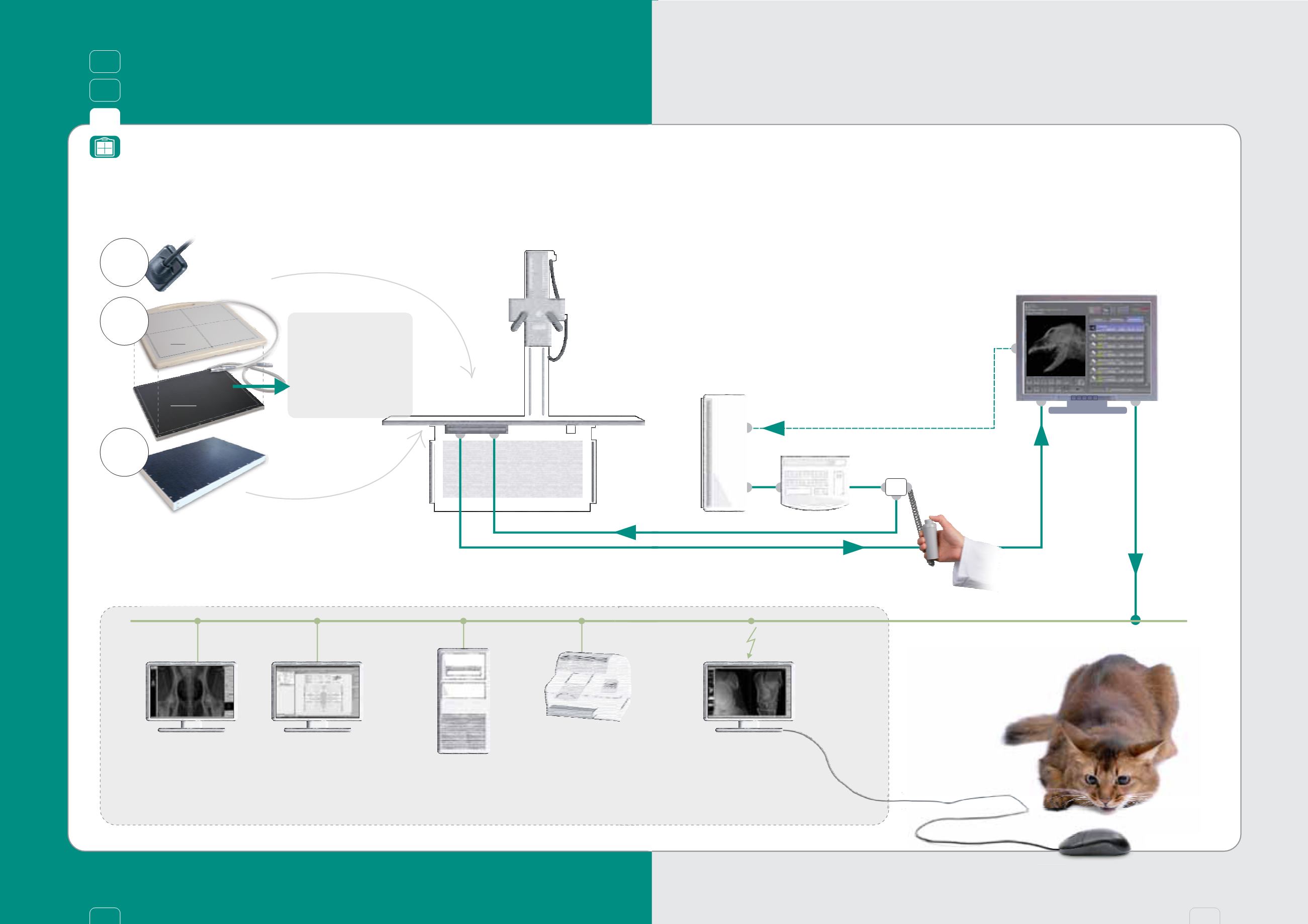

DR upgrade kit work?
Medici
How does
2
3
X-ray unit
Flat panel
(fixed or mobile
installation)
DR flat panels
These panels are available in various sizes:
30 x 40 cm [12 x 16 inch], 36 x 43 cm [14 x 17 inch],
43 x 43 cm [17 x 17 inch]
Mobile
[flat panel
enclosure]
with
[flat panel
enclosure]
without
Fixed
installation
Tooth
sensor
(KODAK RVG
5100)
Attention!
The panel without
enclosure has exactly
the same measurements
as a conventional 43 x 35
cassette. Therefore
reconstruction of the
bucky is not necessary.
Operating console
X-ray generator
with console
Sync box
with worklist
(DICOM worklist)
DICOM store
of X-ray images
Generator control (optional)
Transfer of examination values
(kVp and mAs values) to the
generator
Internet
Transfer of raw images to the console
100/ 1.000 Mbit practice network
Internet web server
for image distribution to colleagues
or animal holders
Synchronisation
Viewing station 1
e.g.
PACS with integration into
the practice management system
dicom vet
®
Laser imager
DICOM Basic
Print
optional
Practice server/
Archive server
Viewing station 2
